首页 - 产品展示 - 过渡接头 - 接头油口 - 公制螺纹油口 - Metric thread port and mating stud end
产品名称: 公制螺纹油口 代号: Metric thread port and mating stud end
产品描述:

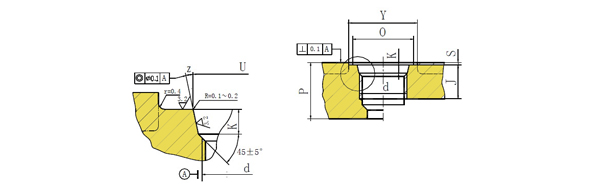

.jpg) | ||||||||
|
螺纹d | J | K | O | P | S | U | Y | Z |
| M5x0.8 | 8 | 1.6 | 8.0 | 9.5 | 1.0 | 6.35 | 14.0 | 12 |
| M8x1 | 10 | 11.0 | 11.5 | 9.1 | 17.0 | |||
| M10x1 | 13.0 | 11.1 | 20.0 | |||||
| M12x1.5 | 11.5 | 2.4 | 16.0 | 14.0 | 1.5 | 13.8 | 22.0 | 15 |
| M14x1.5 | 18.0 | 15.8 | 25.0 | |||||
| M16x1.5 | 13 | 20.0 | 15.3 | 17.8 | 27.0 | |||
| M18x1.5 | 14.5 | 22.0 | 16.5 | 2.0 | 19.8 | 29.0 | ||
| M22x1.5 | 15.5 | 26.0 | 18.0 | 23.8 | 34.0 | |||
| M27x2 | 19 | 3.1 | 32.0 | 22.0 | 29.4 | 40.0 | ||
| M33x2 | 38.0 | 2.5 | 35.4 | 46.0 | ||||
| M42x2 | 19.5 | 47.0 | 22.5 | 44.4 | 56.0 | |||
| M48x2 | 21.5 | 55.0 | 24.5 | 52.4 | 66.0 | |||
| M60x2 | 24.5 | 65.0 | 27.5 | 62.4 | 76.0 | |||
