产品名称: 公制外螺纹74°外锥堵头 代号: 4Q
产品描述:

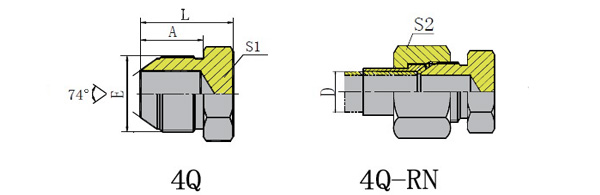

.jpg) | |||||||||
| 代 号 | 螺 纹 | 管子外径 | 尺 寸 | ||||||
| E | D | A | L | S1 | S2 | ||||
| 4Q-10 | M10X1 | 5 | 12.5 | 18.5 | 12 | 14 | |||
| 4Q-12 | M12X1.5 | 6 | 15.7 | 21.7 | 14 | 14 | |||
| 4Q-14 | M14X1.5 | 8 | 17 | 23 | 17 | 17 | |||
| 4Q-16 | M16X1.5 | 10 | 18 | 24 | 17 | 19 | |||
| 4Q-18 | M18X1.5 | 12 | 18 | 24 | 19 | 22 | |||
| 4Q-22 | M22X1.5 | 14 | 19.5 | 27.5 | 24 | 27 | |||
| 4Q-24 | M24X1.5 | 16 | 20 | 30 | 27 | 30 | |||
| 4Q-27 | M27X1.5 | 18 | 20 | 30 | 30 | 32 | |||
| 4Q-30 | M30X1.5 | 20 | 23 | 34 | 32 | 36 | |||
| 4Q-33 | M33X2 | 22 | 26 | 37 | 34 | 41 | |||
| 4Q-36 | M36X2 | 25 | 25 | 38 | 38 | 41 | |||
| 4Q-39 | M39X2 | 28 | 26 | 39 | 41 | 46 | |||
| 4Q-42 | M42X2 | 32 | 28.5 | 41.5 | 46 | 50 | |||
| 4Q-45 | M45X2 | 34 | 28.5 | 41.5 | 46 | 50 | |||
| 注:如需带衬套及螺母整套订货,则请在代号后加"RN", 如4Q-18RN | |||||||||
