首页 - 产品展示 - 过渡接头 - 公制过渡接头 - 公制螺纹74°锥面扩口密封 - 1QL
产品名称: 公制外螺纹74°外锥/公制外螺纹 代号: 1QL
产品描述:

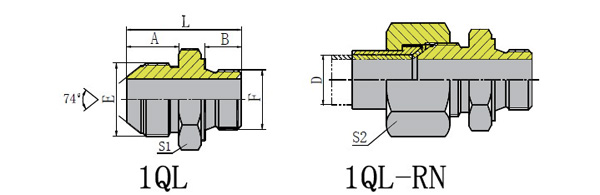

.jpg) | |||||||||
| 代 号. | 螺 纹 | 管子外径 | 尺 寸 | ||||||
| E | F | D | A | B | L | S1 | S2 | ||
| 1QL-10 | M10X1 | M10X1 | 5 | 12.5 | 8 | 27.5 | 17 | 14 | |
| 1QL-12 | M12X1.5 | M12X1.5 | 6 | 15.7 | 12 | 35.2 | 17 | 14 | |
| 1QL-12-10 | M12X1.5 | M10X1 | 6 | 15.7 | 8 | 29.5 | 15 | 14 | |
| 1QL-14 | M14X1.5 | M14X1.5 | 8 | 17 | 12 | 36.5 | 19 | 17 | |
| 1QL-14-12 | M14X1.5 | M12X1.5 | 8 | 17 | 12 | 36.5 | 17 | 17 | |
| 1QL-16 | M16X1.5 | M16X1.5 | 10 | 18 | 12 | 39.5 | 22 | 19 | |
| 1QL-16-14 | M16X1.5 | M14X1.5 | 10 | 18 | 12 | 38 | 19 | 19 | |
| 1QL-18 | M18X1.5 | M18X1.5 | 12 | 18 | 12 | 39.5 | 24 | 22 | |
| 1QL-18-16 | M18X1.5 | M16X1.5 | 12 | 18 | 12 | 38 | 22 | 22 | |
| 1QL-22 | M22X1.5 | M22X1.5 | 14 | 19.5 | 14 | 45 | 27 | 27 | |
| 1QL-22-18 | M22X1.5 | M18X1.5 | 14 | 19.5 | 12 | 39.5 | 24 | 27 | |
| 1QL-27 | M27X1.5 | M27X2 | 18 | 20 | 16 | 49 | 34 | 32 | |
| 1QL-27-22 | M27X1.5 | M22X1.5 | 18 | 20 | 14 | 44 | 30 | 32 | |
| 1QL-30-27 | M30X1.5 | M27X2 | 20 | 23 | 16 | 50 | 34 | 36 | |
| 1QL-33 | M33X2 | M33X2 | 22 | 26 | 18 | 59 | 41 | 41 | |
| 1QL-33-27 | M33X2 | M27X2 | 22 | 25 | 16 | 55 | 34 | 41 | |
| 1QL-36-33 | M36X2 | M33X2 | 25 | 25 | 18 | 56 | 41 | 41 | |
| 1QL-39-33 | M39X2 | M33X2 | 28 | 26 | 18 | 57 | 41 | 46 | |
| 1QL-42 | M42X2 | M42X2 | 32 | 28.5 | 20 | 65.5 | 50 | 50 | |
| 1QL-45-42 | M45X2 | M42X2 | 34 | 28.5 | 20 | 62.5 | 50 | 50 | |
| 注:如需带衬套及螺母整套订货,则请在代号后加"RN" 如1QL-18-16RN | |||||||||
