首页 - 产品展示 - 过渡接头 - 公制过渡接头 - 公制螺纹74°锥面扩口密封 - 1QB

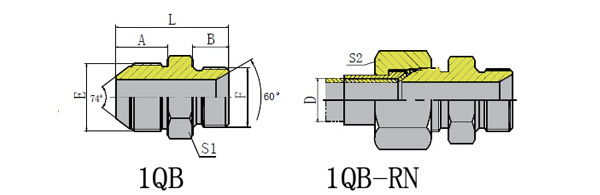

产品名称: 公制外螺纹74°外锥/英管外螺纹60°内锥 代号: 1QB
产品描述:
.jpg) | |||||||||
| 代 号 | 螺 纹 | 管子外径 | 尺 寸 | ||||||
| E | F | D | A | B | L | S1 | S2 | ||
| 1QB-12-02 | M12X1.5 | G1/8"X28 | 6 | 15.7 | 10 | 32 | 14 | 14 | |
| 1QB-14-04 | M14X1.5 | G1/4"X19 | 8 | 17 | 12 | 35 | 19 | 17 | |
| 1QB-18-04 | M18X1.5 | G1/4"X19 | 12 | 18 | 12 | 36 | 19 | 22 | |
| 1QB-22-06 | M22X1.5 | G3/8"X19 | 14 | 19.5 | 13.5 | 41 | 24 | 27 | |
| 1QB-24-08 | M24X1.5 | G1/2"X14 | 16 | 20 | 16 | 46 | 27 | 30 | |
| 1QB-27-10 | M27X1.5 | G5/8"X14 | 18 | 20 | 17.5 | 47.5 | 30 | 32 | |
| 1QB-30-12 | M30X1.5 | G3/4"X14 | 20 | 23 | 18.5 | 52.5 | 32 | 36 | |
| 1QB-33-16 | M33X2 | G1"X11 | 22 | 26 | 20.5 | 59.5 | 41 | 41 | |
| 1QB-39-16 | M39X2 | G1"X11 | 28 | 26 | 20.5 | 59.5 | 41 | 46 | |
| 1QB-45-20 | M45X2 | G1.1/4"X11 | 34 | 28.5 | 20.5 | 64 | 50 | 50 | |
| 注:如需带衬套及螺母整套订货,则请在代号后加"RN" 如1QB-33-16RN | |||||||||
