首页 - 产品展示 - 过渡接头 - 公制过渡接头 - 公制螺纹74°锥面扩口密封 - 1Q

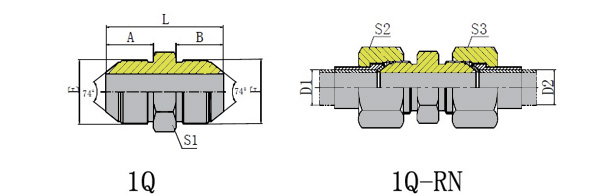

产品名称: 公制外螺纹74°外锥 代号: 1Q
产品描述:
 | |||||||||
| 代 号 | 螺 纹 | 管子外径 | 尺 寸 | ||||||
| E | F | D1,D2 | A | B | L | S1 | S2,S3 | ||
| 1Q-10 | M10X1 | M10X1 | 5 | 12.5 | 12.5 | 31 | 12 | 14 | |
| 1Q-12 | M12X1.5 | M12X1.5 | 6 | 15.7 | 15.7 | 37.4 | 14 | 14 | |
| 1Q-14 | M14X1.5 | M14X1.5 | 8 | 17 | 17 | 40 | 17 | 17 | |
| 1Q-16 | M16X1.5 | M16X1.5 | 10 | 18 | 18 | 42 | 17 | 19 | |
| 1Q-18 | M18X1.5 | M18X1.5 | 12 | 18 | 18 | 42 | 19 | 22 | |
| 1Q-22 | M22X1.5 | M22X1.5 | 14 | 19.5 | 19.5 | 47 | 24 | 27 | |
| 1Q-24 | M24X1.5 | M24X1.5 | 16 | 20 | 20 | 50 | 27 | 30 | |
| 1Q-27 | M27X1.5 | M27X1.5 | 18 | 20 | 20 | 50 | 30 | 32 | |
| 1Q-30 | M30X1.5 | M30X1.5 | 20 | 23 | 23 | 57 | 32 | 36 | |
| 1Q-33 | M33X2 | M33X2 | 22 | 26 | 26 | 63 | 34 | 41 | |
| 1Q-36 | M36X2 | M36X2 | 25 | 25 | 25 | 61 | 38 | 41 | |
| 1Q-39 | M39X2 | M39X2 | 28 | 26 | 26 | 65 | 41 | 46 | |
| 1Q-42 | M42X2 | M42X2 | 32 | 28.5 | 28.5 | 70 | 46 | 50 | |
| 1Q-45 | M45X2 | M45X2 | 34 | 28.5 | 28.5 | 70 | 46 | 50 | |
| 注:如需带衬套及螺母整套订货,则请在代号后加"RN" 如1Q-18RN | |||||||||
