Home - Products - Tube Clamp - U-Bolt Tube Clamp - U-Bolt Tube Clamp PUBTC

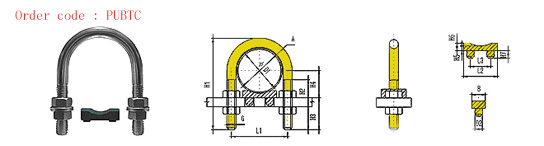

Series: U-Bolt Tube Clamp DIN3015
Model: U-Bolt Tube Clamp PUBTC
U-Bolt tube clamp; carbon steel material, specially used in U shape working condition
Description:
Hydraulic pipe/tube clamps
DIN 3015 clamps

1.Structure: assembly including cover plate, rail nut, clamp body,hexagon bolts
2.Material:

                  Bolts: Carbon steel(zinc coated/phospated)/stainless steel

                  Cover plate: Carbon steel(zinc coated/phosphated)/stainless steel

                  Welding plate: Carbon steel(zinc coated/phosphated)/stainless steel

                  Clamp body: Polypropylene(PP)/Polyamide(PA)/Aluminium(AL)

3.Working Temperature:

PP -30 degree up to +90 degree in dark green colour

PA -40 degree up to +120 degree in dark colour



U-Bolt tube clamp; carbon steel material

Clamp size Tube (mm)  Round steel hoop R B Plastic pads R U K
A L1 H1 H2 H3 H4 G L2 L3 B H5 H6 H7 D2
20 25 30 40 73.5 46 30 17.5 M10 24 25 35 55 8 5 8
26.9 18.5
25 30 38 48 81 50 30 20 M10 24 25 35 55 8 5 8
33.7 22
32 38 46 56 89 50 30 24 M10 24 25 35 55 8 5 8
42.4 26.2
40 44.5 52 62 100 55 35 27.2 M10 24 25 35 55 8 5 8
48.3 29
50 57 64 76 118 63 39 33.5 M12 38 25 50 55 10 6 10
60.3 35.2
65 76.1 82 94 135 77 39 43 M12 38 25 50 55 10 6 10
80 88.9 94 106 152 82 41 52.5 M12 75 40 70 8 17 10 15
100 108 120 136 190 105 49 62 M16 75 40 70 8 17 10 15
114.3 65
125 133 148 164 217 105 49 74.5 M16 75 40 70 8 17 10 15
139.7 78
150 159 176 192 247 105 51 87.5 M16 140 90 75 8 26 10 25ˇˇ
168.3 92
175 193.7 202 218 273 105 51 105 M16 140 90 75 8 26   25
200 216 228 248 311 125 59 116 M20 140 90 75 8 26 10 25
219.1 117.5
250 267 282 302 364 125 59 141.5 M20 140 90 75 8 26 10 25
273 144.5
300 318 332 352 418 125 62 167 M20 220 150 75 8 32 10 30
323.9 170
350 355.6 378 402 475 145 70 186 M24 220 150 75 8 32 10 30
368 192
400 406.4 428 452 526 145 70 211 M24 220 150 75 8 32 10 30
419 217.5
500 508 530 554 627 145 70 262 M24 220 150 75 8 32 10 30
521 269
