Home - Products - Hydraulic Valve & Manifold Block - Carbon Steel - Single Subplate Cetop 5 - PHS5B..PL

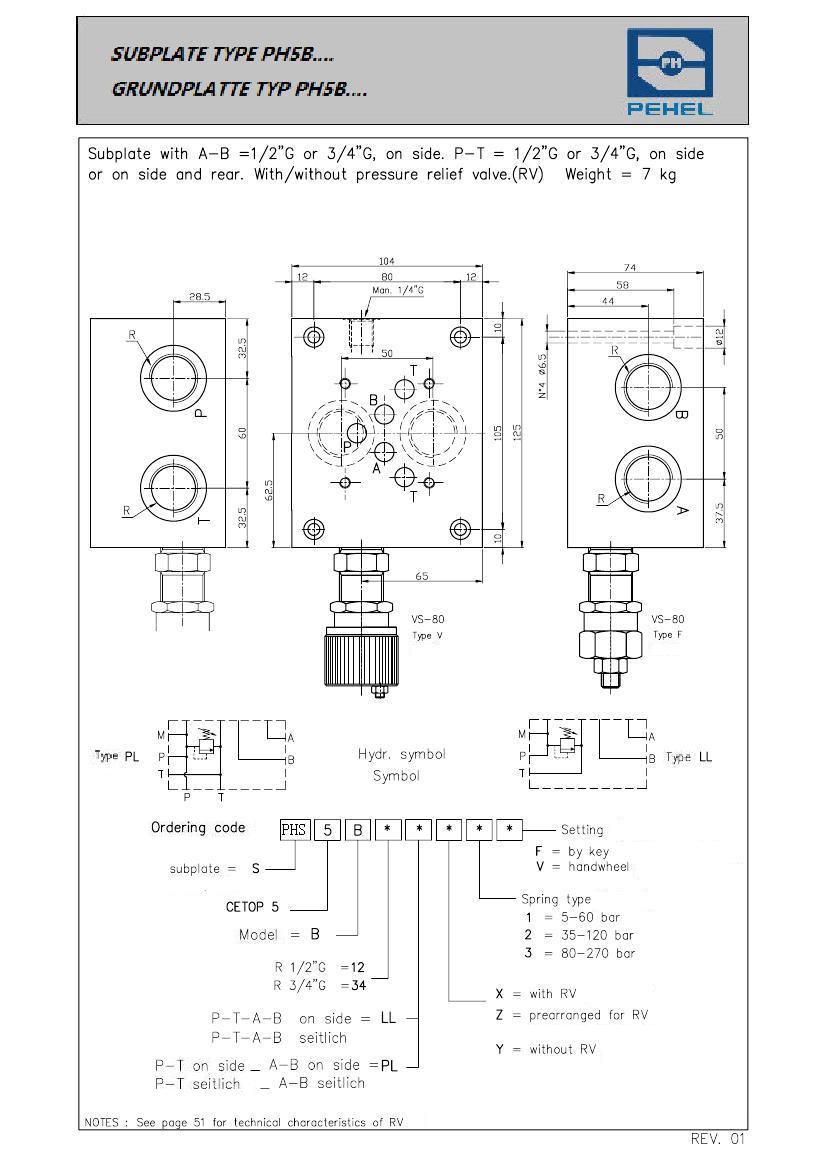

Model: PHS5B..PL
1. Subplate with A-B=1/2”G or 3/4”G, on side. P-T =1/2”G or 3/4”G, on side or on side and rear.
2. With/without pressure relief valve.(RV)
3. Weight=7kg
4. up to 8 stations
5.  Superior in quality and competitive in price
P-T on rear, A-B-P-T on side,with R.V.

NPT,SAE,PT thread for all parts is available
