Home - Products - Hydraulic Valve & Manifold Block - Carbon Steel - Single Subplate Cetop 5 - PHS5B..LL
Model: PHS5B..LL

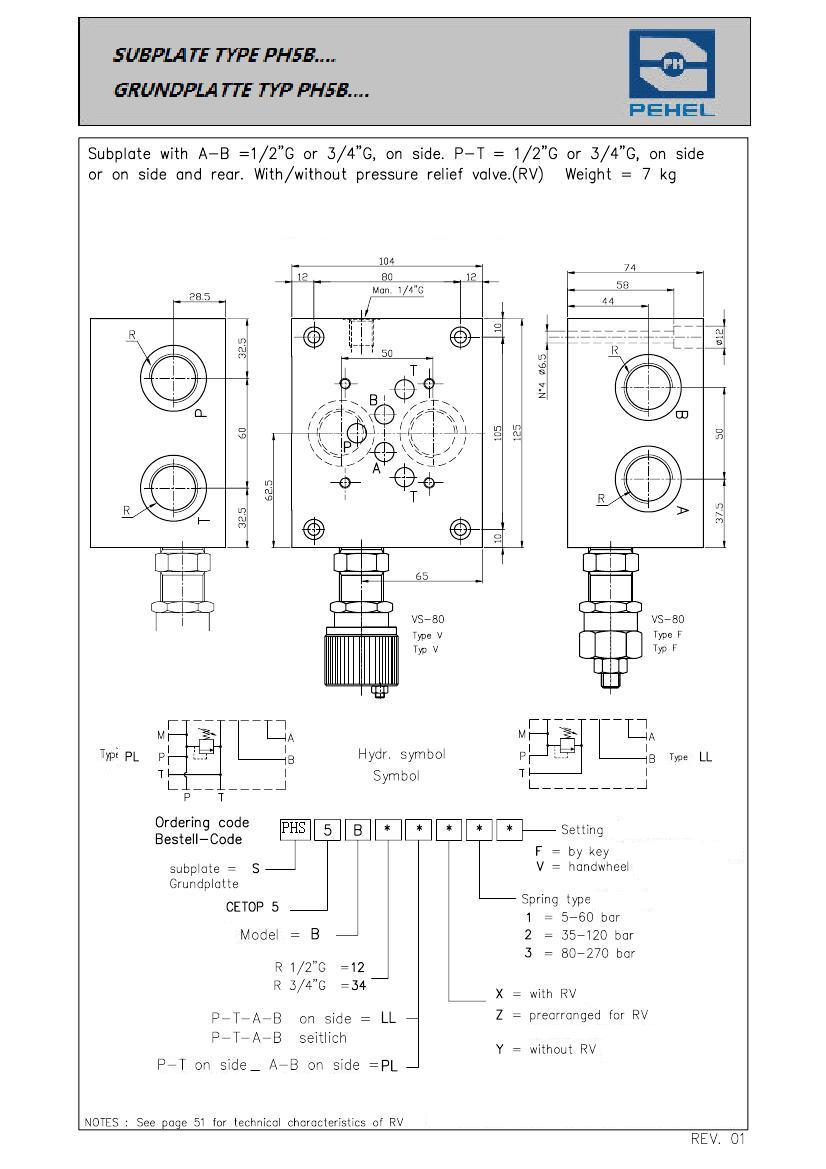

1. Subplate with A-B=1/2”G or 3/4”G, on side. P-T =1/2”G or 3/4”G, on side or on side and rear.
2. With/without pressure relief valve.(RV)
3. Weight=7kg
4. High performance and cost effective.
5. NPT, SAE, PT thread for all parts is available
A-B-P-T on longer side,with prearranged R.V.

NPT,SAE,PT thread for all parts is available
