Home - Products - Hydraulic Valve & Manifold Block - Carbon Steel - Single Subplate Cetop 3 - PHS3C14
Model: PHS3C14

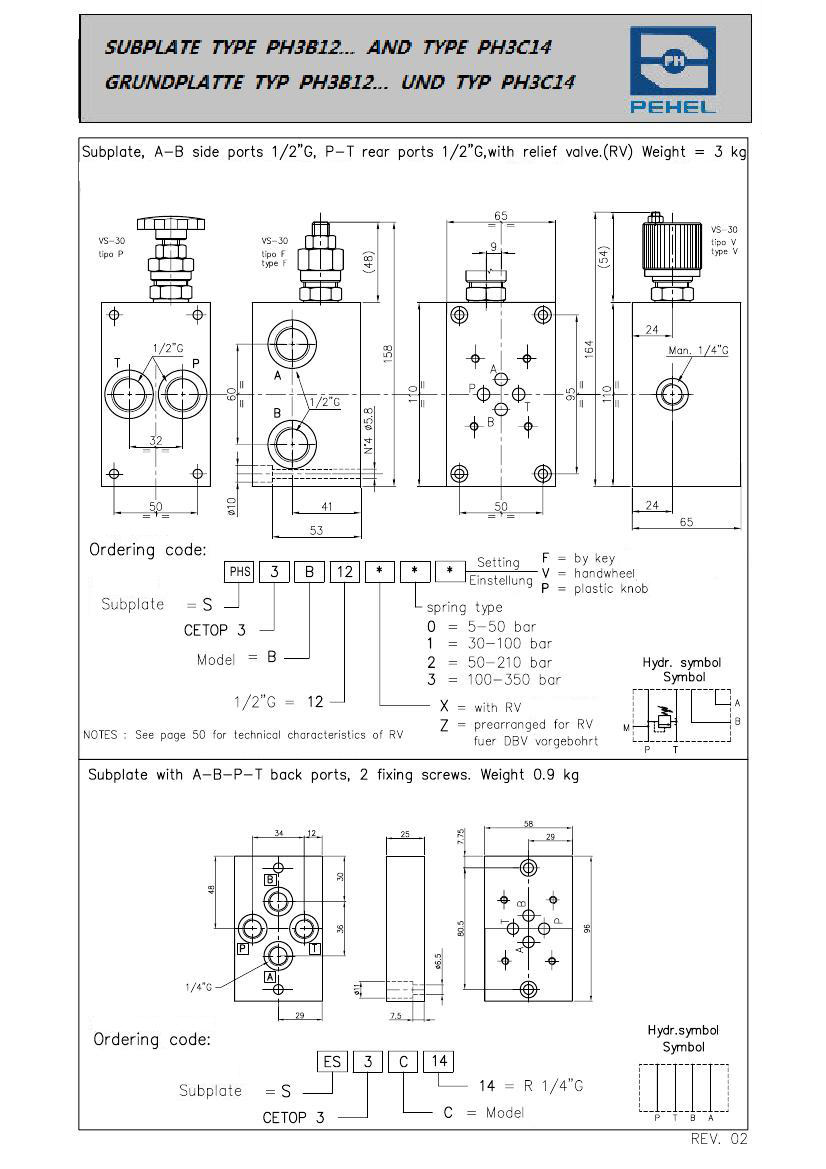

1.Subplate, A-B side ports 1/2”G, P-T rear ports 1/2”G, with relief valve. (RV)
   Weight= 3 kg
2.Subplate with A-B-P-T back ports, 2 fixing screws. Weight 0.9kg
3.up to 8 stations
4.NPT, SAE, PT thread for all parts is available
5.Superior in quality and competitive in price
A-B-P-T on rear 1/4''G

NPT,SAE,PT thread for all parts is available
