Home - Products - Hydraulic Valve & Manifold Block - Carbon Steel - Subplates Packing Plates End Plates Cetop3 Cetop5 - PHC3B3
Series:
Model: PHC3B3

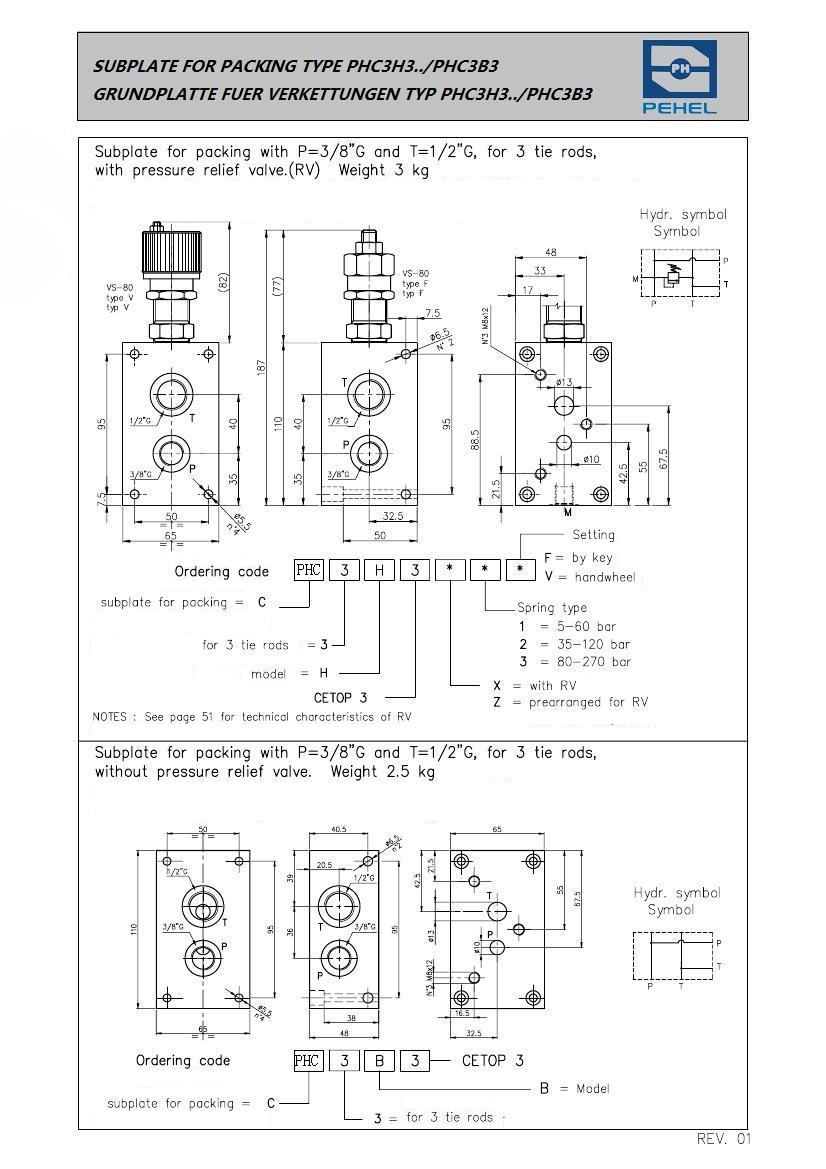

1. Subplate for packing with P=3/8”G and T =1/2”G, for 3 tie rods. With pressure relief valve.(RV)
 Weight=3kg
2. Subplate for packing with P=3/8”G and T =1/2”G, for 3 tie rods. Without pressure relief valve. (RV)
 Weight=2.5kg
3. up to 8 stations
4. Superior in quality and competitive in price
Description:
subplate, P 3/8''G, T 1/2''G, rear and side, without R.V.




NPT,SAE,PT thread for all parts is available
