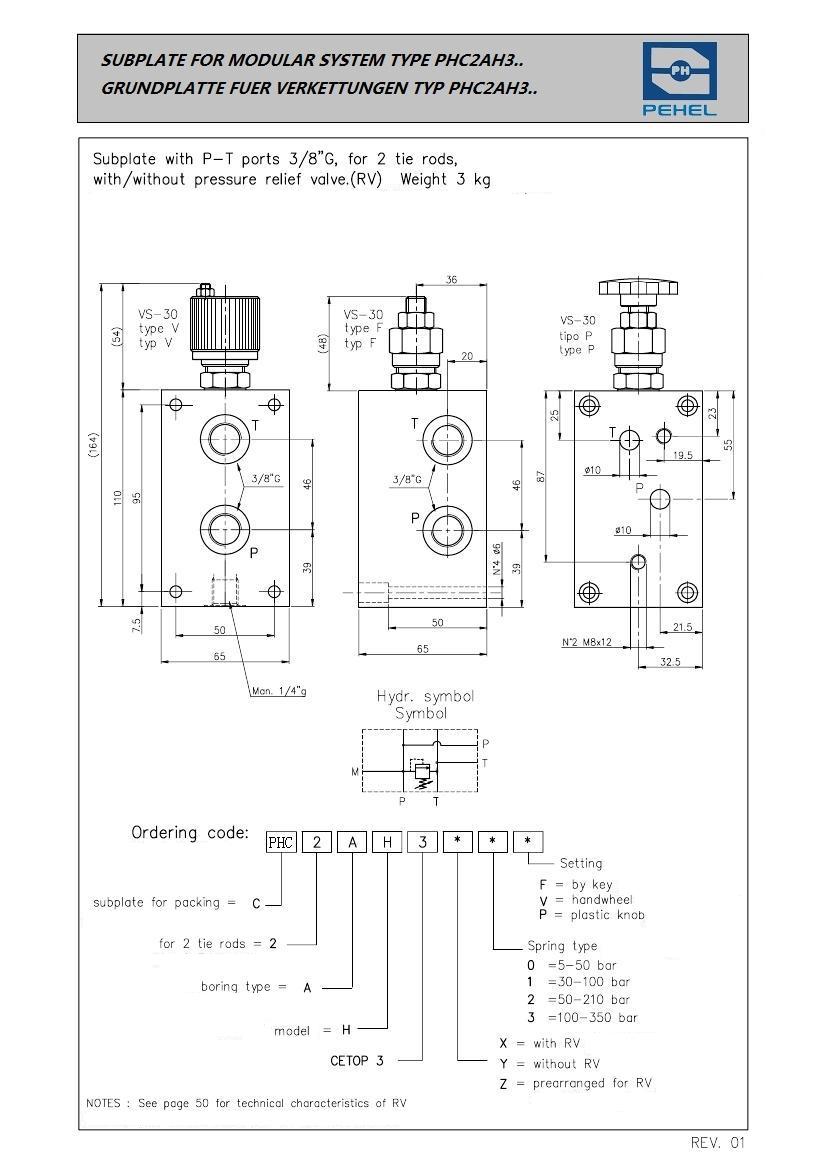

Model: PHC2AH3
1. Subplate with P-T ports 3/8”G, for 2 tie rods
2. With/ without pressure relief valve.(RV)
3. Weight=3kg
4. High performance and cost effective.
subplate, P-T 3/8''G on rear and side, with prearranged for R.V.

NPT,SAE,PT thread for all parts is available
