Series: Single subplate cetop 8
Model: PHS8A114PL

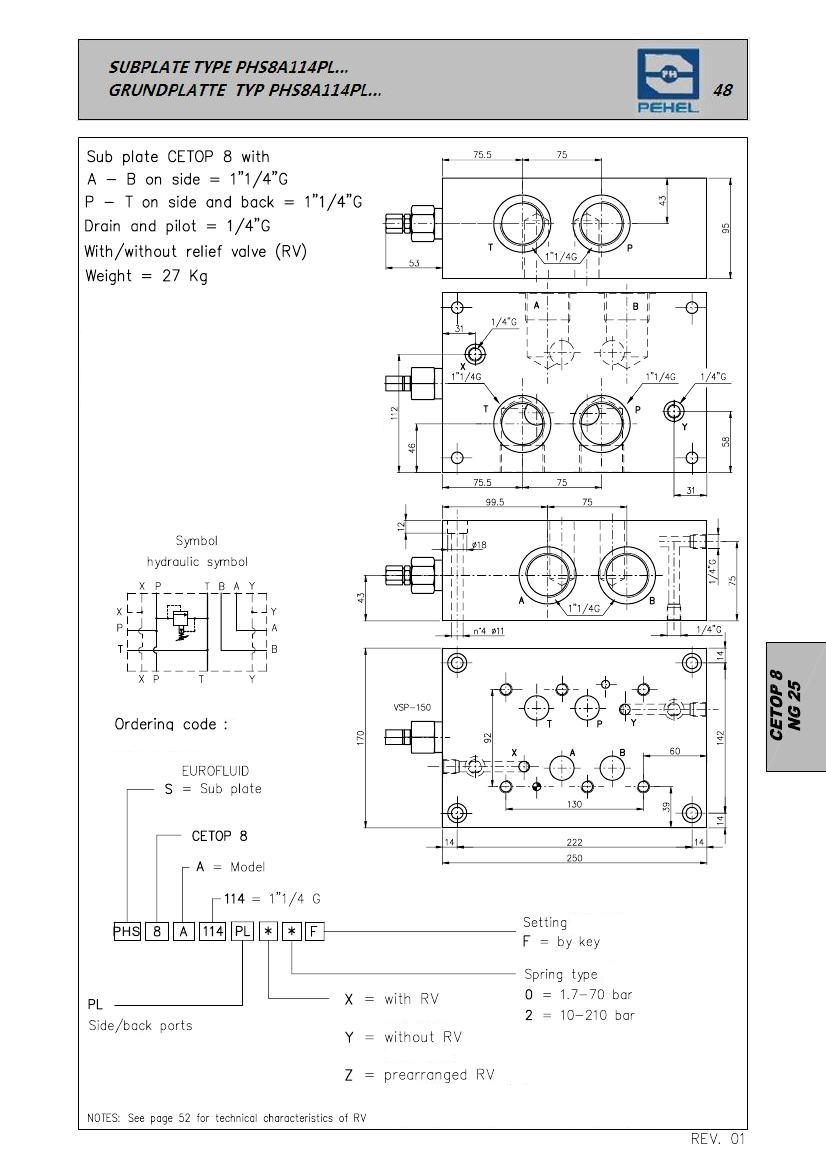

1. Sub plate cetop8 with A-B on side=1.1/4”G
2. P-T on side and back=1.1/4”G. Drain and pilot=1/4”G.
    With /without relief valve (RV) Weight=27kg
3. High performance and cost effective.
4. NPT, SAE, PT thread for all parts is available
5. Scientific design and precise manufacturing
A-B on side, P-T rear / side 1'' 1/4, X-Y 1/4'', with R.V.

NPT,SAE,PT thread for all parts is available
