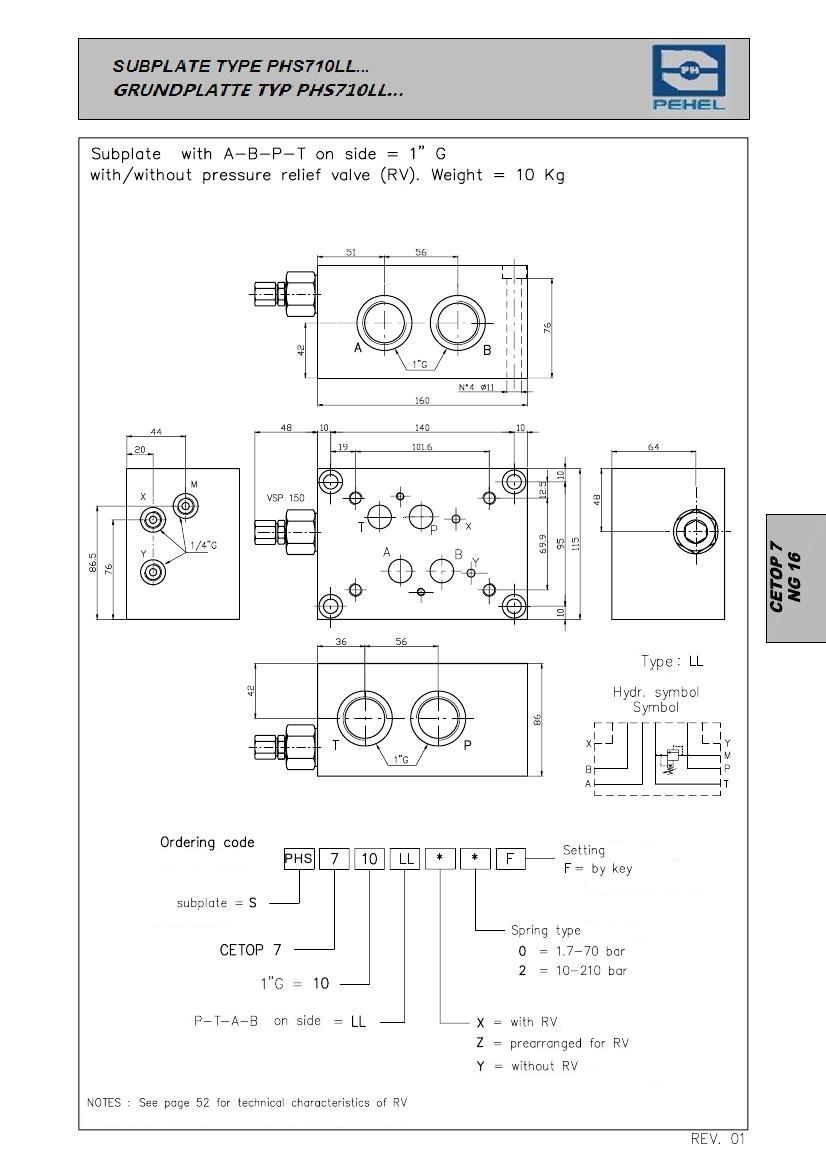

Series: single subplate cetop 7
Model: PHS710LL
1. Subplate with A-B-P-T on side =1”G.
2. with / without pressure relief valve (RV).
3. Weight=10kg
4. High performance and cost effective.
5. NPT, SAE, PT thread for all parts is available
A-B-P-T on longer side 1''G, X-Y on side 1/4''G, with R.V.

NPT,SAE,PT thread for all parts is available
