Home - Products - Union - One Piece Fitting - Union - One Piece Fitting - 15611PK
Series:
Model: 15611PK

Description:

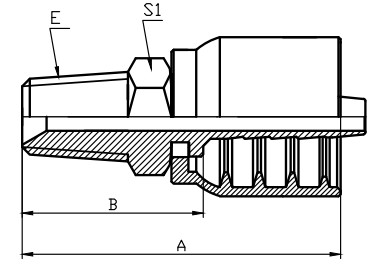

PART NO. E (THREAD E) HOSE BORE (DN) HOSE BORE (DASH) DIMENSIONS (A) DIMENSIONS (B) DIMENSIONS (S1)
15611-04-04PK Z1/4"X18 6 4 48.5 28.9 14
15611-04-06PK Z1/4"X18 10 6 52 30 17
15611-06-06PK Z3/8"X18 10 6 53.5 31.5 19
15611-06-08PK Z3/8"X18 12 8 59 30.5 19
15611-08-08PK Z3/8"X18 6 4 53.5 33.9 22
15611-08-10PK Z1/2"X14 10 6 57.5 35.5 22
15611-12-12PK Z1/2"X14 12 8 63 34.5 22
15611-08-04PK Z1/2"X14 16 10 71 33.9 22
15611-08-06PK Z1/2"X14 20 12 73.5 33.9 27
15611-16-16PK Z3/4"X14 25 16 90.5 45.5 36
15611-20-20PK Z1"X11.5 32 20 95.8 48.8 45
15611-24-24PK Z1-1/4"X11.5 40 24 91 52.6 50
15611-32-32PK Z1-1/2"X11.5 50 32 103 55.8 64
15611-06-04PK Z2"X11.5 6 4 49 29.4 19
