Home - Products - Union - One Piece Fitting - Union - One Piece Fitting - 10411PK
Series:
Model: 10411PK
Description:

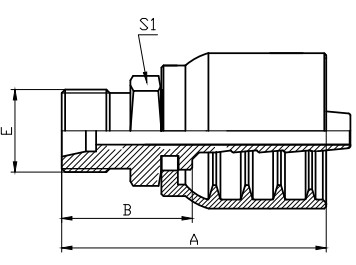

| PART NO. | E (THREAD E) | HOSE BORE (DN) | DIMENSIONS (A) | DIMENSIONS (B) | DIMENSIONS (S1) | HOSE BORE (DASH) |
| 10411-14-04PK | M14X1.5 | 6 | 4 | 43 | 23.4 | 14 |
| 10411-16-06PK | M16X1.5 | 10 | 6 | 48.5 | 26.5 | 19 |
| 10411-18-06PK | M18X1.5 | 10 | 6 | 48.5 | 26.5 | 19 |
| 10411-22-08PK | M22X1.5 | 12 | 8 | 55 | 26.5 | 22 |
| 10411-26-10PK | M26X1.5 | 16 | 10 | 64.5 | 27.4 | 27 |
| 10411-26-12PK | M26X1.5 | 20 | 12 | 67 | 27.4 | 27 |
| 10411-30-12PK | M30X2 | 20 | 12 | 71 | 31.4 | 30 |
| 10411-36-16PK | M36X2 | 25 | 16 | 82 | 37 | 36 |
